Peblar EV Charging Stations

Supported Devices​

Device TypeModbus TCP (Ethernet)RS485
Peblar Home✅❌
Peblar Home Plus
Peblar Business

Connection​

The communication between the MidTeq EMS and the Peblar EV Chargers operates via Modbus TCP.

Settings​

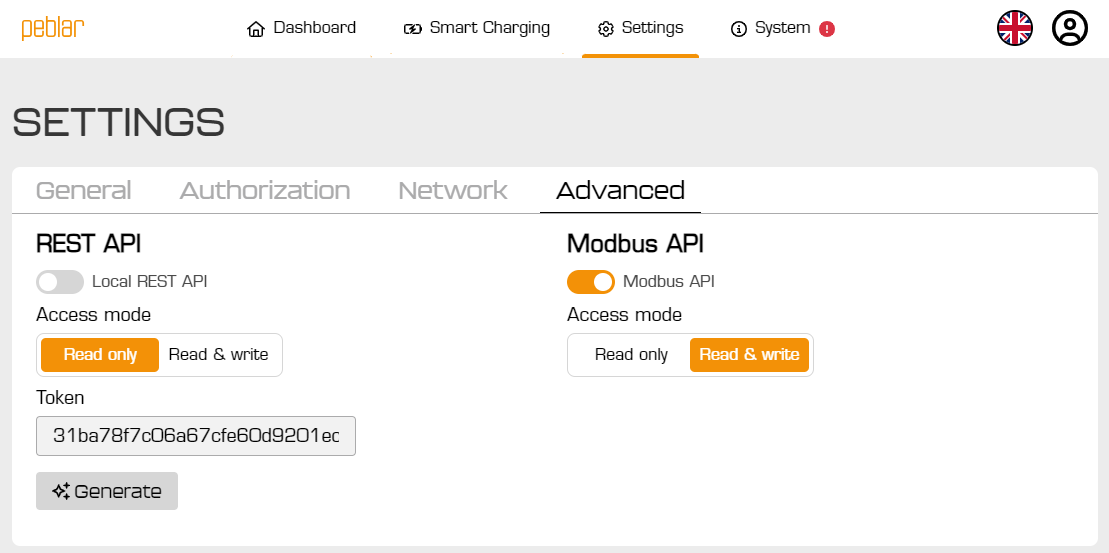

Peblar Settings

The Peblar EV Chargers need to have modbus enabled:

  1. Open the chargers web interface
  2. Navigate to "Settings" -> "Advanced"
  3. Enable "Modbus API"
  4. Set the "Access mode" to "Read & write"
