Tesvolt
Supported Devices
| Device Type | Modbus TCP (Ethernet) | RS485 | Curtailment |
|---|---|---|---|
| Energy Manager | ✅ | ❌ | ✅ |
Wiring
The communication between the MidTeq EMS and the Tesvolt system operates via Modbus TCP. For correct ethernet wiring: Follow the the guidelines for ethernet wiring.
Energy Manager
Tesvolt Energy Manager Configuration
| Steps |
|---|
| 1a. Open the Tesvolt Energy Manager web interface. Request the link to the portal, and its login credentials from your installer |

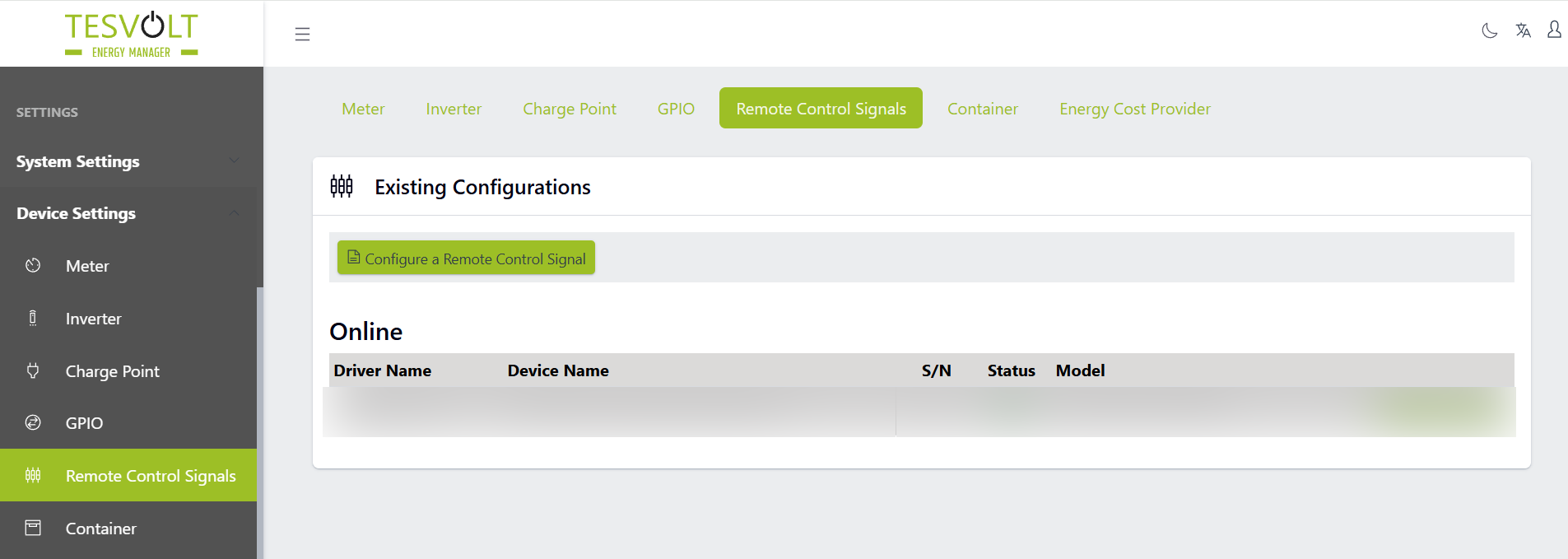

1b. Go to Remote Control Signals under Device Settings and press Configure a Remote Control Signal:  |

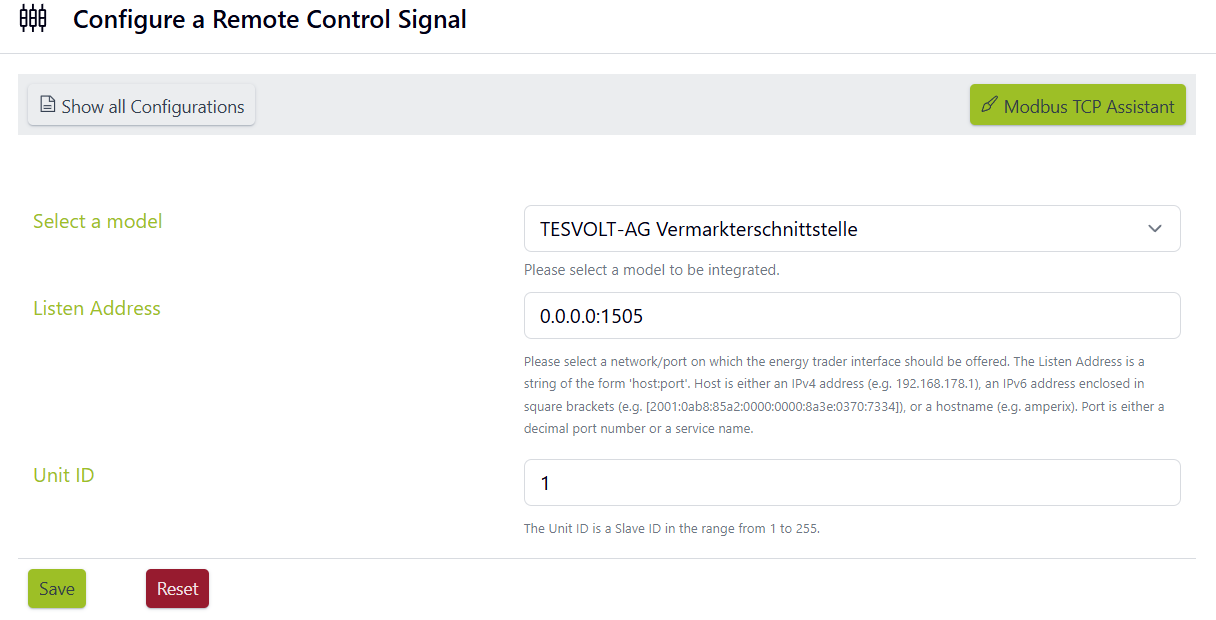

1c. Configure the device with the correct IP address(Listen Address) and slave address(Unit ID) and press Save:  |
Troubleshooting

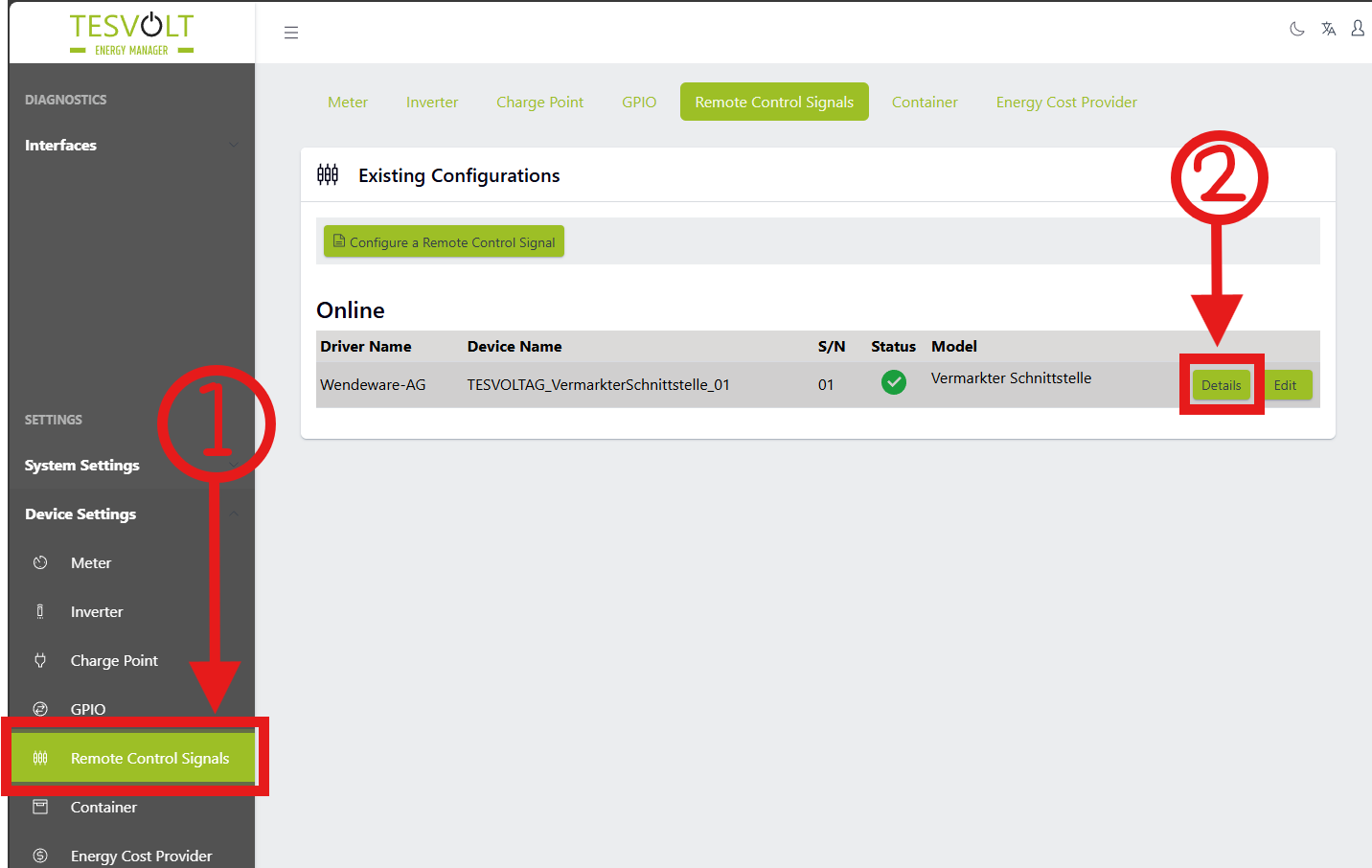

Inside the Tesvolt Energy manager web interface, it's possible to check the signals that are sent by the MidTeq EMS to the Tesvolt Energy Manager. It can be reached using this way:
PV control issues:
If any issues occur related to PV control, check if the following value corresponds with the value set by the controller:
Battery control issues:

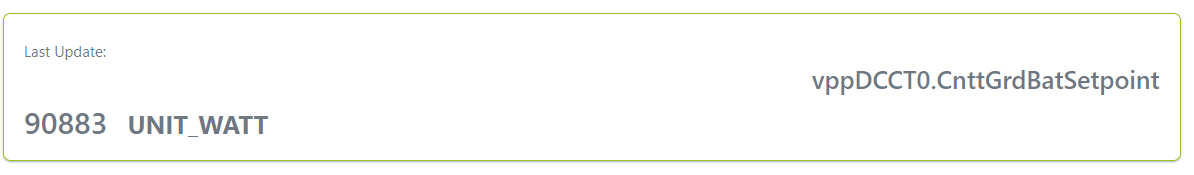

If any issues occur related to battery control, check if the following value corresponds with the value set by the controller:
